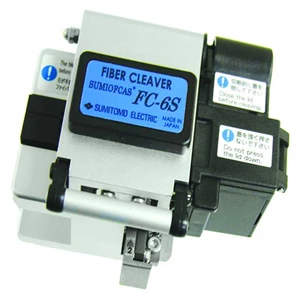

Detail Cleaver Splicer Sumitomo FC-6S
Features
Used for Single Fiber Cleaving
Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
Prevents Double Scoring of the Fibers
Has Superior Blade Height and Rotational Adjustment
Available With Automatic Fiber Scrap Collection
Can Be Operated With Minimal Steps
Description
With the introduction of the FC-6S , you now can have the ultimate precision tool for single fiber cleaving. The FC-6S is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
Built on a robust high-quality platform, theFC-6S is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. An optional fiber scrap collector can be installed with the FC-6S to help maintain loose scraps, resulting from the cleaving process. The scrap collector works to automatically grab and store the scrap fibers as the cleaver’ s lid is raised, following a completed cleave.
To request a quote or for more information, please call 800-358-7378 and ask for Customer Service, send us an email through “ contact us, ” or use our Request a Quote function. We’ re ready to assist you.
Dimensions
63W x 65D x 63H ( mm)
Weight
430g Without Scrap Collector; 475g With Scrap Collector
Coating Diameter
0.25mm - 0.9mm ( Single)
Cladding Diameter
0.125mm
Cleave Length
9mm - 16mm ( Single Fiber - 0.25mm coating)
10mm - 16mm ( Single Fiber - 0.9mm coating)
Typical Cleave Angle
0.5 Degrees
Typical Blade Life
36, 000 Fiber Cleaves
Number of Steps for Cleave
2
Blade Adjustments
Rotational & Height
Automatic Scrap Collection
Optional
